#3 Disclosure of another 0day malware - Analysis of the final Payload (Part 3)

In the last Part of this series I partly analyzed the final Payload. I haven't finished the analysis of the malware due to lack of time (and interest), but I will provide as much as information I have discovered. It looks like this malware is a classic spying tool (information gathering), but it would be interesting to know who is the attacker and who are the victims. Unfortunately I don't have a chance to reveal the identity of both and speculation is also not possible since the lack of any hints.
The final Payload also wasn't uploaded to Virustotal, so the detection rates supposedly are very low.

Final Payload
Sample: netui.dll
Size: 37.376 Bytes
Timestamp: 09.06.2012 12:27:19
MD5: AA3E6AF90C144112A1AD0C19BDF873FF

We start by examing the Export functions of this .dll.


Init1

It sleeps for 10 seconds and waits for Main Thread to be finished (WaitForSingleObject()).

ServiceMain

This is the first time I see that IDA Pro 5.0 free correctly recognized the ServiceMain function with its structure!
At first the Service Control Handler is registered with help of RegisterServiceCtrlHandlerEx() function. The Service Handler checks for SERVICE_CONTROL_STOP, SERVICE_CONTROL_INTERROGATE or SERVICE_CONTROL_SHUTDOWN control codes and fills the elements of the SERVICE_STATUS structure with the appropriate values to call SetServiceStatus() function afterwards. Then a new Thread (Main Thread) is created and started by calling the CreateThread() function. There follows final calls to the SetServiceStatus() function.

DllMain

At first it builds the key for decrypting the strings, function names and library names which are later (also) used for dynamically resolving API addresses. Here is the full list of decrypted strings:

LoadLibraryA
GetProcAddress
SetCurrentDirectoryW
Sleep
KERNEL32.dll
RegisterServiceCtrlHandlerExW
SetServiceStatus
ADVAPI32.dll
PathRemoveFileSpecW
SHLWAPI.dll
_except_handler3
_local_unwind2
MSVCRT.dll
free
_initterm
malloc
_adjust_fdiv
netui.dll
Init1
ServiceMain
nvgdata.dat
nvsdata.dat
%s%S
SOFTWARE\Microsoft\Windows\CurrentVersion\Explorer
IP
els.dll
rmdir /S /Q "%s"
systeminfo
Software\Microsoft\Internet Account Manager\Accounts\00000001
%.8d
%s%s
%s is %s\n
REMOVABLE
FIXED
REMOTE
CDROM
OTHER
sptr
qfa
mpk
/~%s/cgi-bin/%s.cgi?%s
Microsoft Enhanced Cryptographic Provider v1.0
POST
Domain...
Generic..
Server..
Share....
......
--%S
Init
UnInit
%s ID:%d Path:
COMSPEC
tmp.dat
 /c %s > \"%s\"
pstorec.dll
PStoreCreateInstance
Name = %s
Internet Explorer
http
StringIndex
Data =
HKLM
HKCU
HKCC
HKCR
HKU
--%s--
Name: %s Type:
STRING Value:%s
DWORD Value:%.8x
BINARY Value:
brvc
MSIE 8.0
svchost.exe
RSA1
kernel32.dll
GetLocalTime
HeapDestroy
DeleteCriticalSection
WaitForSingleObject
InitializeCriticalSection
HeapCreate
SetErrorMode
HeapFree
HeapAlloc
lstrlenA
CloseHandle
WriteFile
SetFileTime
CreateFileW
GetLastError
DeleteFileW
lstrcatW
HeapReAlloc
ReadFile
GetFileSize
FindClose
FindNextFileW
HeapSize
CreateEventA
SetEvent
InternetOpenA
FileTimeToSystemTime
FindFirstFileW
PathIsDirectoryW
GetSystemTimeAsFileTime
GetFileTime
SetFilePointer
GetDriveTypeA
GetLogicalDriveStringsA
SetEndOfFile
Sleep
LeaveCriticalSection
EnterCriticalSection
ReleaseMutex
CreateThread
CreateMutexA
MultiByteToWideChar
WideCharToMultiByte
GetModuleHandleA
TerminateThread
WaitForMultipleObjects
GetKeyNameTextW
SystemTimeToFileTime
GetModuleFileNameExW
GetSystemDirectoryW
FreeLibrary
GetExitCodeThread
psapi.dll
CreateToolhelp32Snapshot
CreateProcessW
TerminateProcess
OpenProcess
lstrcmpW
lstrlenW
advapi32.dll
RegSetValueExW
RegQueryValueExW
RegOpenKeyExW
RegCloseKey
shlwapi.dll
RegEnumKeyExW
RegEnumValueW
RegQueryInfoKeyW
RegDeleteValueW
mpr.dll
WNetCloseEnum
WNetEnumResourceW
WNetOpenEnumW
msvcrt.dll
memset
memcpy
wininet.dll
InternetConnectA
StrToIntA
StrToIntW
StrStrIW
_snwprintf
wsock32.dll
gethostbyname
inet_ntoa
WSAStartup
WSACleanup
user32.dll
SetForegroundWindow
GetForegroundWindow
CallNextHookEx
StrStrA
GetKeyboardState
GetWindowTextW
UnhookWindowsHookEx
SetWindowsHookExA
DispatchMessageA
TranslateMessage
GetMessageA
Process32NextW
Process32FirstW
GetTempPathW
VirtualProtect
ToUnicodeEx
ole32.dll
CoInitialize
CoUninitialize
CoTaskMemFree
HttpSendRequestA
HttpSendRequestExA
InternetGetConnectedState
InternetCloseHandle
HttpOpenRequestA
InternetWriteFile
InternetQueryDataAvailable
_snprintf
TryEnterCriticalSection
GetCurrentThreadId
GetEnvironmentVariableW
GetWindowThreadProcessId
GetKeyboardLayout
AttachThreadInput
PostThreadMessageA
PathFindFileNameW
crypt32.dll
CryptStringToBinaryA
CryptBinaryToStringA
HttpEndRequestA
InternetReadFile
CryptReleaseContext
CryptDestroyKey
CryptEncrypt
CryptGetKeyParam
CryptExportKey
CryptGenKey
CryptImportKey
CryptAcquireContextA
GetModuleFileNameW
NetUI
{
}

Then some function addresses are resolved and stored into global variables. What's different to the other files is that the final Payload makes use of an Anti-Reversing technique by storing the vast majority of the function addresses in Heap memory. This way a reverser only sees the base pointer (eax/ecx in this case) and an offset into the Buffer that contains the addresses (see full list in Appendix), e.g.:

call dword ptr [eax+20h] -> CreateFile()
or
call dword ptr [ecx+0BCh] -> WNetEnumResourceW()

Then it checks if the final Payload (.dll) was loaded into the virtual address space of the current process (checks if "fwdReason" = "DLL_PROCESS_ATTACH [1]") and exits if not. Next it resolves a bunch of API addresses and exits if one function address can't be resolved without doing anything malicious. It then retrieves the module file name (GetModuleFileNameW()) and tests if it is "svchost.exe". If the final Payload wasn't installed as a Service (check Part 2 -> Registry "SharedTaskScheduler" or "Run" startup methods) the module name is either "rundll32.exe" or "Explorer.exe". Dlls which are present in the SharedTaskScheduler registry key are loaded by Explorer.exe at system startup. If the module name isn't svchost.exe, the malware knows that it had to create the Main Thread (CreateThread()), otherwise the Main Thread is created in the ServiceMain routine.

Main Thread
The Main Threads starts with the same anti (AV) emulation technqiue as we have seen before by using a set of MMX instructions. If the instructions aren't emulated the occuring exception is catched and the malware exits. There follows a function which resolves the majority of the Windows API function addresses for later use. If just one of these functions can't be resolved the malware also exits.

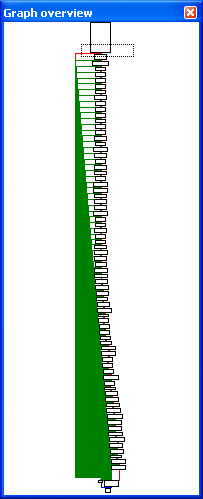

Figure 1: API function address resolving (if just one fails, the rest is skipped)

Next the module file name is retrieved by calling GetModuleFileName() function and cut to the next directory by using PathRemoveFileSpec() function. This new path ("C:\Windows\System32" or "C:\Documents and Settings\<Username>\Local Settings\Application Data") is set as the current directory with help of SetCurrentDirectory() function. Then the process is set to handle specified types of serious errors, so the system does not display the critical-error-handler message box. This is done to prevent any suspicious error messages done accidently by the malware.
In the following function the temporary folder is retrieved to build the strings "C:\Documents and Settings\<Username>\Local Settings\Temp\nvgdata.dat" and "C:\Documents and Settings\<Username>\Local Settings\Temp\nvsdata.dat" (Note: The temporary path can differ, see Part 2). There follows once again the retrival of the "els.dll" file time, or if this fails the system time. Then it opens the "HKEY_LOCAL_MACHINE" registry root key that was created by the 3rd Dropper (see Part 2) to get the encrypted data (RegOpenKeyEx() + RegQueryValueEx()). If that fails it tries to get the encrypted data from the "HKEY_CURRENT_USER" root key that was also created by the 3rd Dropper for that reason.

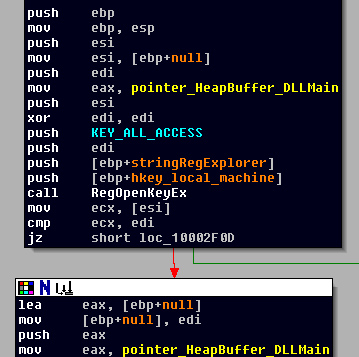

Figure 2: Retrieving of the encrypted registry data stored by the 3rd Dropper (see Part 2)

Next, the 9 strings from "IP" entry are decrypted in memory with the same function that was used for strings, functions names and library names at the beginning.

Then it checks if the last of the 9 strings is a "1" or "0" (see Part 2). If it is a "1" (as in our case), a new Thread with a Keylogger is created. As a keylogger, the "SetWindowsHookEx" method with type "WH_KEYBOARD_LL" is used (Google: "Keylogger SetWindowsHookEx"). First it checks if a key was pressed (WM_KEYDOWN, WM_SYSKEYDOWN) and then gets the window of the key message by using GetForegroundWindow() function.

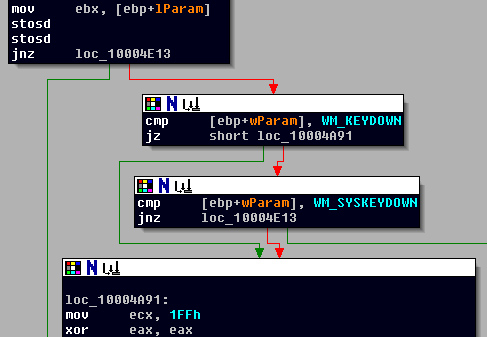

Figure 4: Malware checks if a key was pressed

Next it gets the process name of the window in which the key was pressed (GetWindowThreadProcessId(), OpenProcess() + GetModuleFileNameEx()) and stores in into a buffer with some additional characters to better distinguish from the rest("-", "[", "]"). Thereafter the window text/capture is retrieved and also stored into the buffer (GetWindowText()) again with some characters ("[" and "]"). There follows the translation of the virtual key pressed into the actual key character (GetKeyNameText(), GetKeyboardState(), GetKeyboardLayout() + ToUnicodeEx()). After translation the character is also appended to the data in the buffer. Special pressed keys (Control, Tab, ...) are stored between the characters "{" and "}". The stored information in the buffer has the following form:

--[ModuleFileName]--
[WindowText]

...keyloggedCharacters...{CTRL}{ALT}....\n\n


After the receiving of the pressed key, the function CallNextHookEx() is used to continue. This function is also called if the message hasn't the type "WH_KEYBOARD_LL" to pass the hook information to the next hook procedure, otherwise it would be lost and that would be suspicious.

That's all of the code of this final Payload I have analyzed. Below I give you some additional information I stumbled across during analysis, but doesn't had the time to sequence.

I hope you enjoyed this 3 Part series of dissecting a multi stage malware. The completion of the analysis of this final Payload is left to the reader. ;-)


Final random Parts

As I have said, here are some random information of the final Payload:

- The final Payload is multithreaded (8 CreateThread() function calls) and uses InitializeCriticalSection(), EnterCriticalSection(), TryEnterCriticalSection(), LeaveCriticalSection(), DeleteCriticalSection() functions for data access synchronization
- It makes use of the Microsoft CryptoAPI (CryptAcquireContext(), CryptImportKey(), CryptGenKey(), CryptExportKey(), CryptGetKeyParam(), CryptEncrypt(), ...) to encrypt data with the RSA public-key encryption and then store it on disk (CreatFile() + ReadFile())
- Just like the Downloader, it also uses the Common Gateway Interface to transfer encrypted data (the gathered information, ...) to a Server (200.74.244.118), this time with the URL ".../~bing/cgi-bin/..."
- By using the GetDriveType() and GetLogicalDriveStrings() functions it retrieves the drive types (CDROM, REMOTE, FIXED, ...) and its appropriate drive names
- ...


Appendix

Windows API function offsets:

Hex    Function
0      InternetOpen
4     DeleteCriticalSection
8      WaitForSingleObject
C     InitializeCriticalSection
10    lstrlen
14    CloseHandle
18    WriteFile
1C    SetFileTime
20    CreateFile
24    GetLastError
28    DeleteFile
2C    lstrcat
30    HeapReAlloc
34    ReadFile
38    GetFileSize
3C    FindClose
40    FindNextFileW
44    HeapSize
48    GetLocalTime
4C    FileTimeToSystemTime
50    FindFirstFileW
54    CreateEvent
58    GetSystemTimeAsFileTime
5C    GetFileTime
60    SetFilePointer
64    SetEndOfFile
68    Sleep
6C    LeaveCriticalSection
70    EnterCriticalSection
74    ReleaseMutex
78    CreateThread
7C    CreateMutex
80    MultiByteToWideChar
84    WideCharToMultiByte
88    SetEvent
8C    TerminateThread
90    FreeLibrary
94    lstrcmp
98    lstrlen
9C    RegSetValueEx
A0    RegQueryValueEx
A4    RegOpenKeyEx
A8    RegCloseKey
AC    RegEnumKeyExW
B0    RegEnumValueW
B4    RegQueryInfoKeyW
B8    WNetCloseEnum
BC    WNetEnumResourceW
C0    WNetOpenEnumW
C4    CryptStringToBinary
C8    memset
CC    memcpy
D0    InternetConnect
D4    HttpSendRequest
D8    HttpSendRequestEx
DC    StrToIntA
E0    TryEnterCriticalSection
E4    StrStr
E8    StrStrI
EC    _snprintf
F0    _snwprintf
F4    inet_ntoa
F8    gethostbyname
FC    SetForegroundWindow
100    GetForegroundWindow
104    CallNextHookEx
108    ToUnicodeEx
10C    GetKeyboardState
110    GetWindowText
114    OpenProcess
118    InternetGetConnectedState
11C    InternetCloseHandle
120    HttpOpenRequest
124    InternetWriteFile
128    InternetQueryDataAvailable
12C    HttpEndRequest
130    InternetReadFile
134    CryptReleaseContext
138    CryptDestroyKey
13C    WaitForMultipleObjects
140    GetKeyNameText
144    GetModuleFileNameEx
148    GetTempPath
14C    StrToIntW
150    GetCurrentThreadId
154    GetWindowThreadProcessId
158    GetKeyboardLayout
15C    AttachThreadInput
160    PathFindFileName
164    CryptBinaryToString
168    CryptEncrypt
16C    CryptGetKeyParam
170    CryptExportKey
174    CryptGenKey
178    CryptImportKey
17C    CryptAcquireContext
